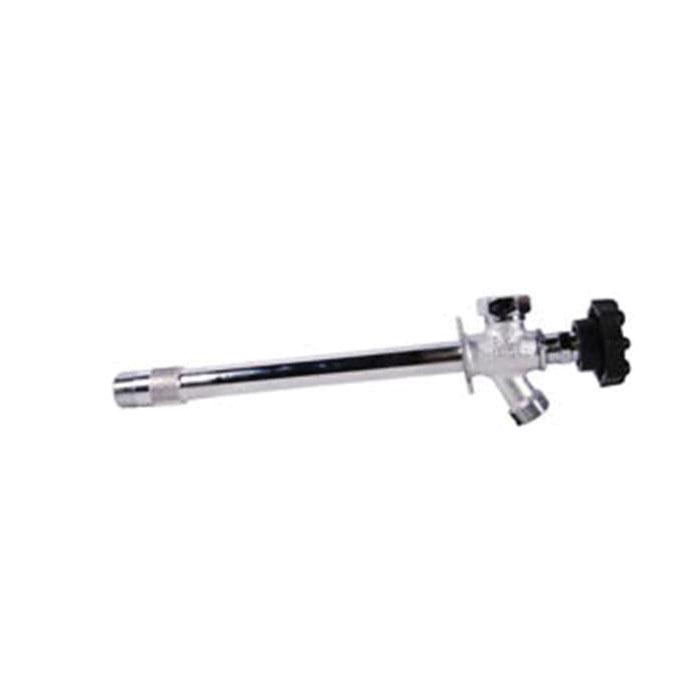

Legend Valve Frost-Free Sillcock, TM-550 Series, 3/4 x 6 in Nominal, MNPT x FNPT Connection, 125 CWP, Water Media, Quarter-Turn Handle Actuator, 11.12 in Inlet to Outlet Length, Brass Body, Brass Stem, Metal Handle, EPDM Softgoods, Handwheel Operator, Material Standard: ASTM C6802/C27000, Lead-Free, 3.4 in H x 11.12 in W
| Actuator Type | : | Quarter-Turn Handle |
| Body Material | : | Brass |
| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 3.4 in H x 11.12 in W |
| Disc Material | : | Aluminum |
| Handle Material | : | Metal |
| Inlet to Outlet Length | : | 11.12 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material Standard | : | ASTM C6802/C27000 |
| Media | : | Water |
| Mounting Type | : | Flange |
| Nominal Size | : | 3/4 x 6 in |
| Operator Type | : | Handwheel |
| Packing Material | : | Forged Brass |
| Pressure Rating | : | 125 CWP |
| Series | : | TM-550 Series |
| Softgoods Material | : | EPDM |
| Stem Material | : | Brass |
| Trim Material | : | Stainless Steel |
- Lead-free design is suitable for all no-lead potable water installation, in full compliance of all no-lead plumbing laws
- Patented, rubber-coated hand wheel is easy-to operate with wet or gloved hands
- The UV-stabilized rubber-coating resists sunlight cracking and weathering
- Oversized, angled mounting flange with screw slots covers enlarged, over drilled sill holes, facilitates the correct downward drainage pitch and mounts more easily and securely than smaller flanges with notches
- Lockshield packing nut extends beyond the end of the stem, permitting handle removal, which prevents unauthorized operation
- All body segments are chrome-plated, providing better corrosion-resistance over competitor's unplated versions
- 3/4 x 6 in TM-550 no-lead brass multi-turn frost-free sillcock, softouch, MNPT/FNPT
