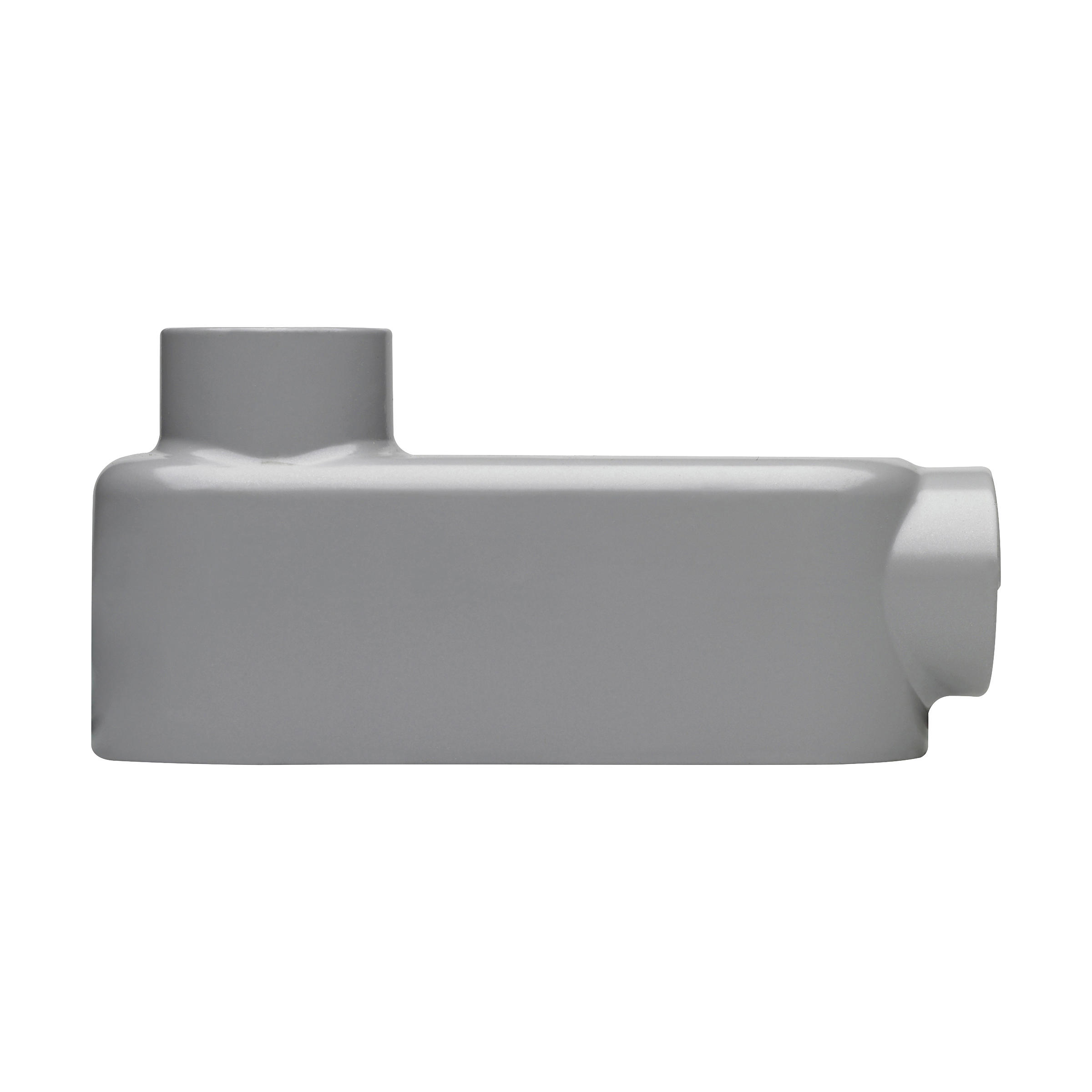

Crouse-Hinds Condulet® Rigid/IMC Conduit Outlet Body, Series: 5 Series, 1/2 in Hub, 4.35 cu-in, Aluminum Body, Aluminum Cover, Neoprene Gasket, Epoxy Powder-Coated, 4.24 in Length, 1.31 in Width, 2.11 in Height
| Body Material | : | Aluminum |
| Capacity | : | 4.35 cu-in |
| Cover Material | : | Aluminum |
| Finish | : | Epoxy Powder-Coated |
| Gasket Material | : | Neoprene |
| Height | : | 2.11 in |
| Hub Size | : | 1/2 in |
| Length | : | 4.24 in |
| Series | : | 5 Series |
| Width | : | 1.31 in |
- Body, traditional cover and gasket
- Die cast copper-free aluminum construction is lightweight and corrosion-resistant for long, reliable service
- Epoxy powder coat finish provides additional corrosion resistance and an aesthetically pleasing appearance
- Conduit bodies are supplied with threaded hubs for use with rigid/IMC conduit or as a combination body
- Combination bodies are supplied with tri-head set screws (slotted, Phillips®, Robertson) for use with EMT or rigid/IMC conduit on trade sizes 1/2 to 2 in
- Domed aluminum cover provides additional cubic capacity
- Perforated center gasket that can be easily removed, if desired
